Ovation
If it is quality you're looking for, the Göpfert Ovation just can't be stopped: simply setup while run. This Flexo Post printer can be accessed at any time as a High Board Line version, thus saving you valuable time, accelerating processing and allowing you to remain flexible. The countless other modular options such as dryers, chamber doctor blade and laser engraved anilox rolls are of added benefit. Printing that makes an impression. Efficiency that pays off.
The one for all.
Pressure that impresses. Profitability that pays off.

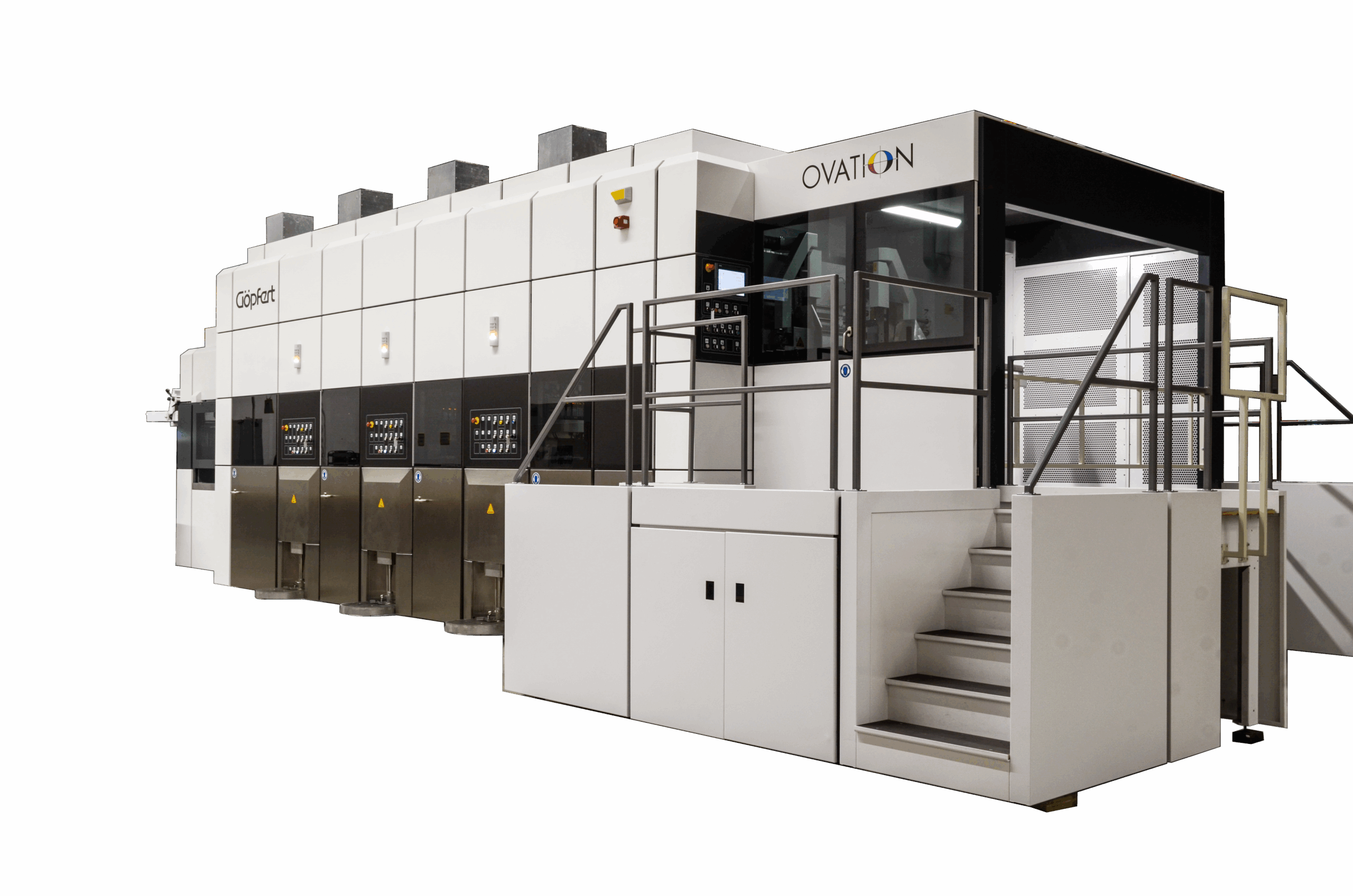

The Göpfert Ovation is a fixed station high board line flexo post printer. The machine has been designed for production of highest quality flexo post printed sheets. Thanks to true servo direct drive technology and vacuum sheet transport the RDC Ovation achieves maximum register accuracy. Optional features like doctor chamber blade systems and laser engraved anilox rolls enable users to achieve highest printing quality. The 2.200 mm (86.61”) board line in combination with the open machine architecture enable operators to set the machine while production is running. The Ovation can be installed either as an offline flexo post printer or in line, for example with a flatbed die cutter.
Offer your customers the option to print on the inside and on the outside in one single pass:
The top-bottom-printing units are also available for the Göpfert Ovation.
Technical Data
| Ovation 13/21-24 | ||
|---|---|---|
| repeat (circumference): | 1.382 mm | 54 7/16″ |
| sheet size max.: | 1.270 x 2.100 mm / 2.400 mm | 50 x 82 11/16″ // 94 1/2″ |
| sheet size min.: | 460 x 600 mm | 18 1/8 x 23 5/8 ″ |
| print surface max. (depending on hooking-in system): | 1.250 x 2.100 mm / 2.400 mm | 49 3/16 x 82 11/16″ // 94 1/2″ |
| board thickness min. / max.: | 1,0 – 9,0 mm | 0.039 – 0-354″ |
| board line (from floor): | 2.200 mm | 86 5/8″ |
| mechanical speed max.: | 14.000 Stck./Std. (offline) | 14.000 sheets/h |
| stereo thickness (standard): | 4,34 mm | 0.185″ |
Technical Data
| Ovation 16/20-28 | ||
|---|---|---|
| repeat (circumference): | 1.676 mm | 66″ |
| sheet size max.: | 1.530 x 2.000 mm / 2400 mm / 2800 mm | 60 1/4″ x 78 3/4″ // 94 1/2″ // 110 1/4″ |
| sheet size min.: | 460 x 600 mm | 18 1/8″ x 23 5/8″ |
| print surface max. (depending on hooking-in system): | 1.520 x 2.000 mm / 2400 mm / 2800 mm | 59 13/16″ x 78 3/4″ // 94 1/2″ // 110 1/4″ |
| board thickness min. / max.: | 1,0 – 9,0 mm | 0.039 – 0-354″ |
| board line (from floor): | 2.200 mm | 86 5/8″ |
| mechanical speed max.: | 10.000 Stck./Std. | 10,000 sheets/h |
| stereo thickness (standard): | 4,34 mm | 0.185″ |
